S/N

Item

Parameters

1

Center Frequency(F0)

14GHz

2

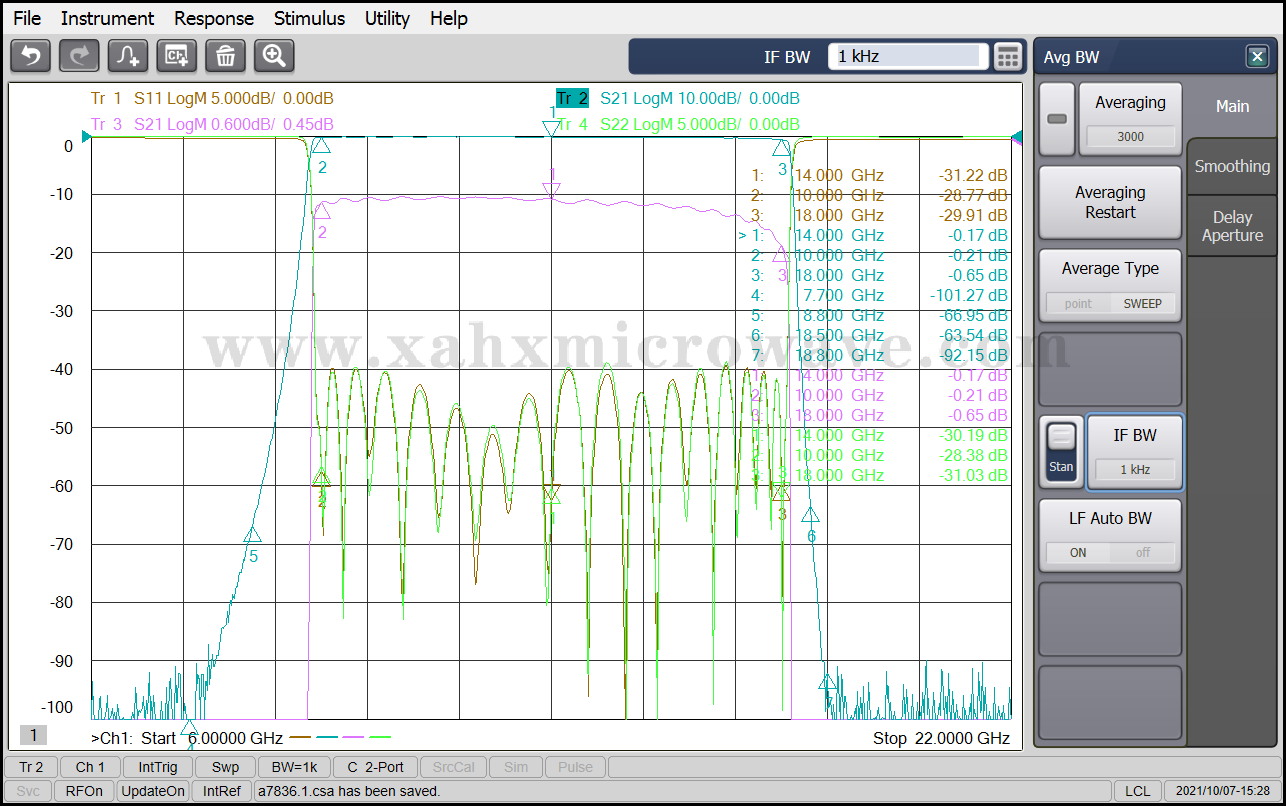

Pass Band Frequency

10 ~ 18GHz

3

Pass Band Insertion Loss

≤2.0dB

4

Pass Band Ripple

≤1.2dB

5

Pass Band Return Loss

≥17dB

6

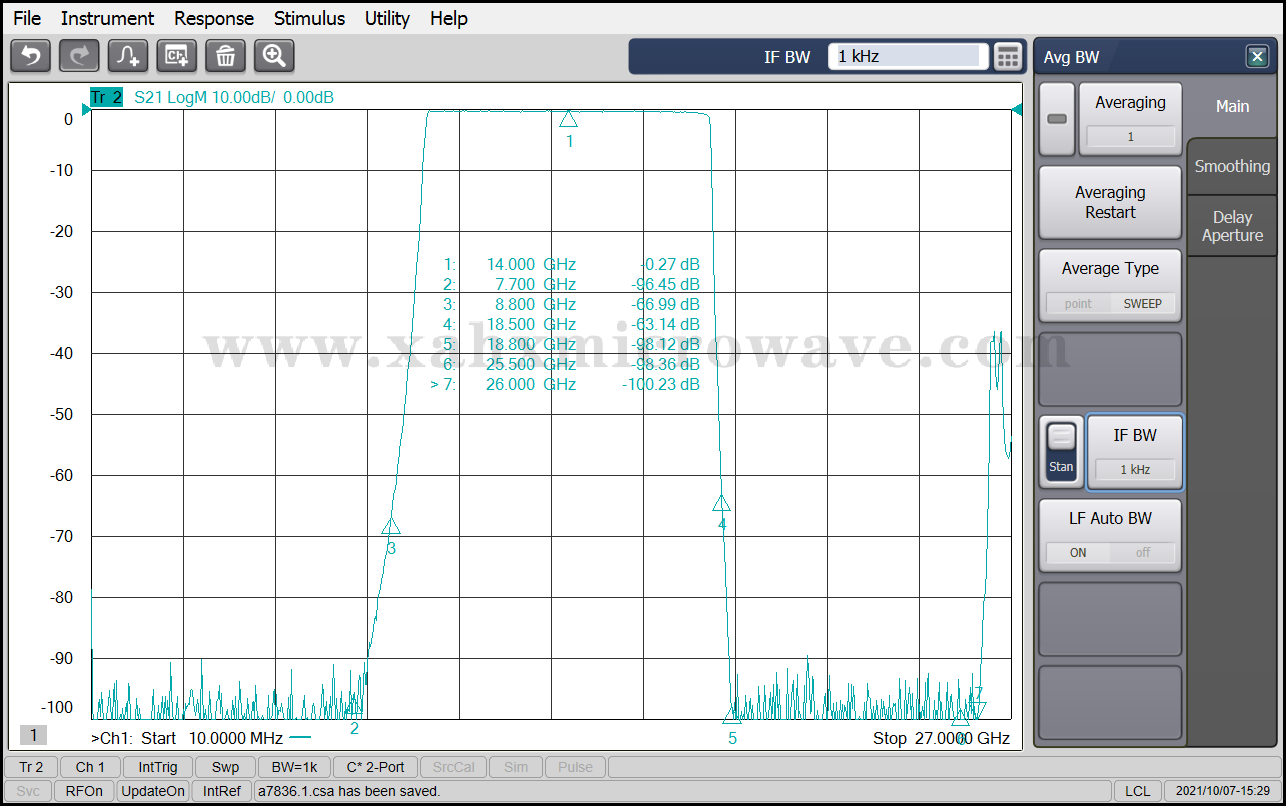

Stop Band Rejection

≥80dB @ DC ~ 7.7GHz

≥50dB @ 7.7 ~ 8.8GHz

≥50dB @ 18.5 ~ 18.8GHz

≥80dB @ 18.8 ~ 25.5GHz

7

Impedance

50 Ohms

8

Power Handling

5W Max.

9

Connectors

ø0.5*2mm PIN (SMA-Female Removable)

10

Surface Finish

Painted Black

11

Temperature Range

-30℃ ~ +70℃
