Technical Data Sheet
●	Center Frequency	2345MHz
●	Pass Band Frequency	2320～2370MHz
●	Insertion Loss	≤1.7dB
●	Ripple in Band	≤1.0dB
●	VSWR	≤1.3:1
●	Rejection	≥3.5dB @ Fc±5MHz (2315MHz、2375MHz)
		≥65dB @ Fc±20MHz (DC～2300MHz、2390～4000MHz)
●	Impedance	50 ohms
●	Power	≤50W
●	Surface Finish	Black Paint
●	Connectors	SMA-Female

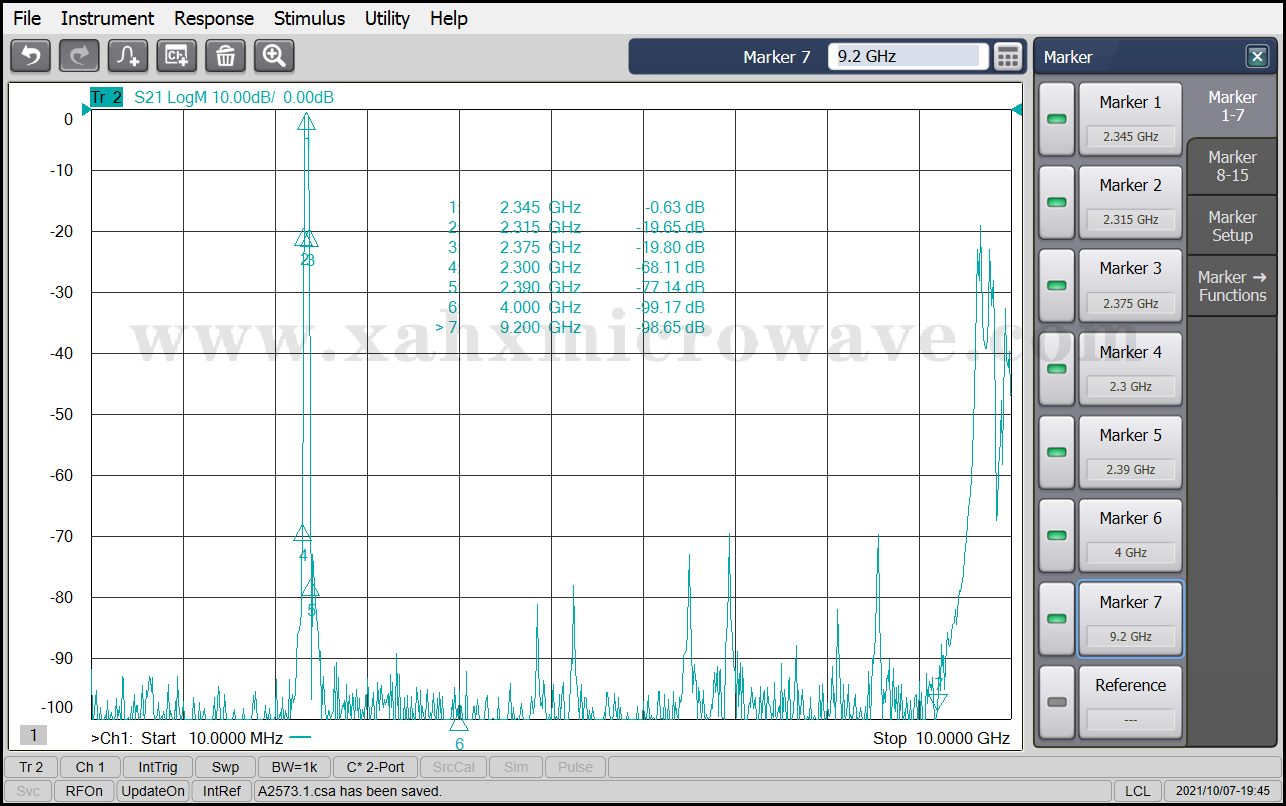

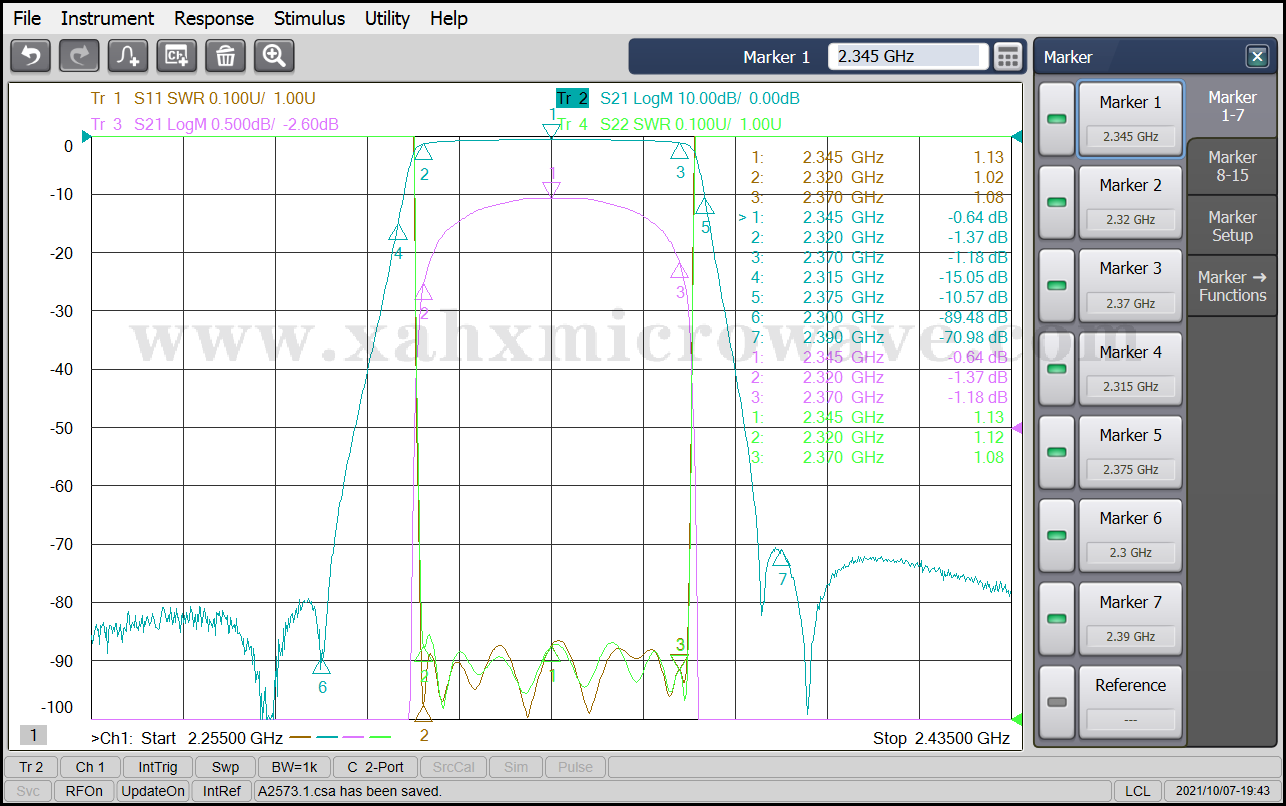

Test Curve
