Technical Data Sheet
●	Center Frequency (F0)	3450MHz
●	Pass Band Frequency	3400～3500MHz
●	Pass Band Insertion Loss	≤1.0dB
●	Pass Band Ripple	≤0.5dB
●	Pass Band VSWR	≤1.2:1
●	Stop Band Attenuation	≥50dB @ DC～3340MHz
		≥50dB @ 3560～11000MHz
●	Impedance	50 ohms
●	Power Handling	≤10W
●	Connectors	SMA-Female
●	Operating Temperature	-30℃～+80℃

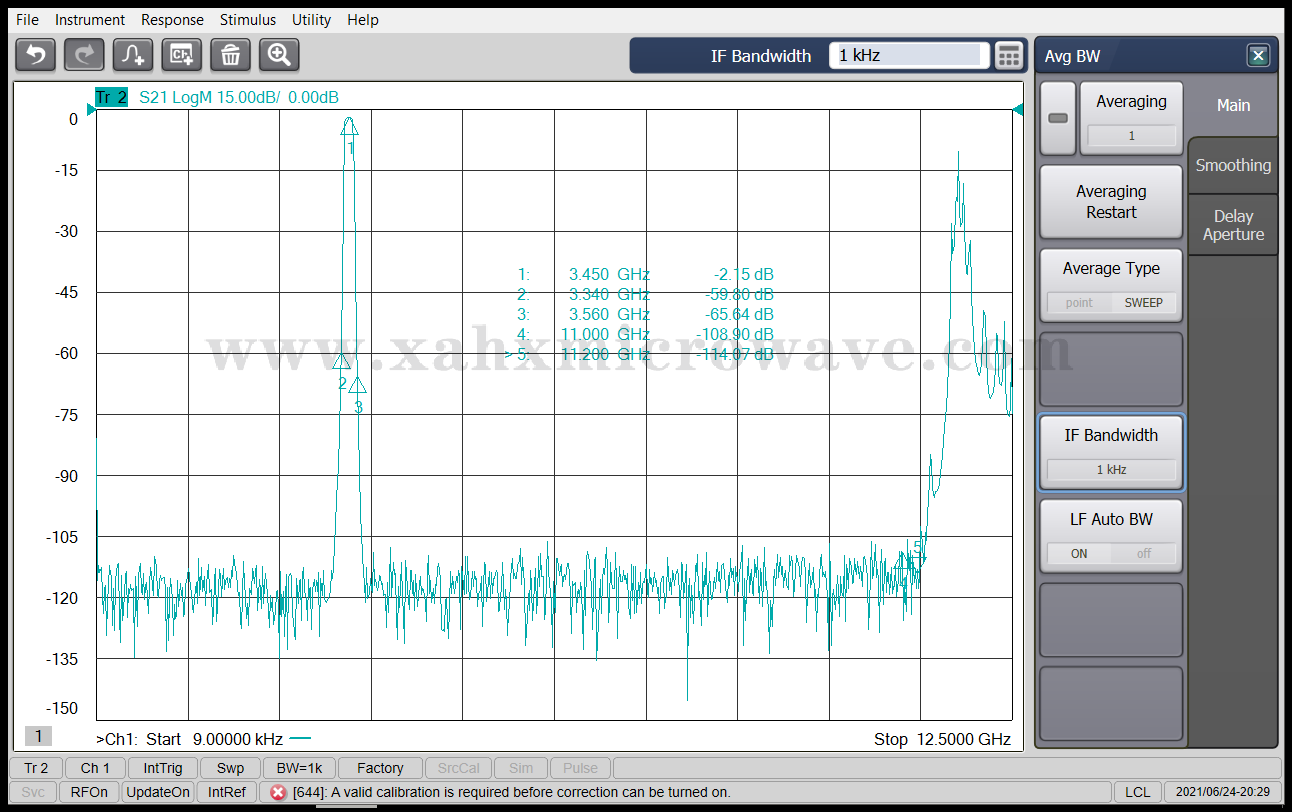

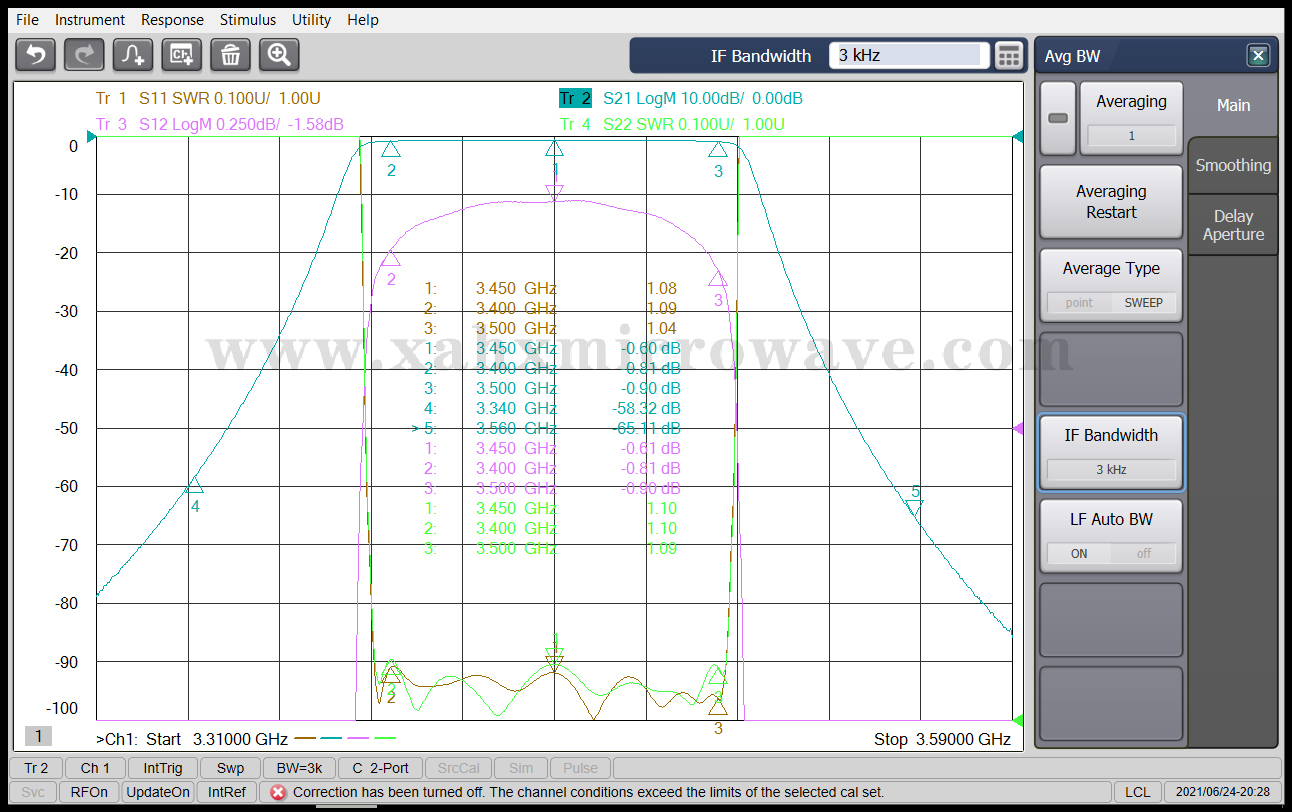

Test Curve
