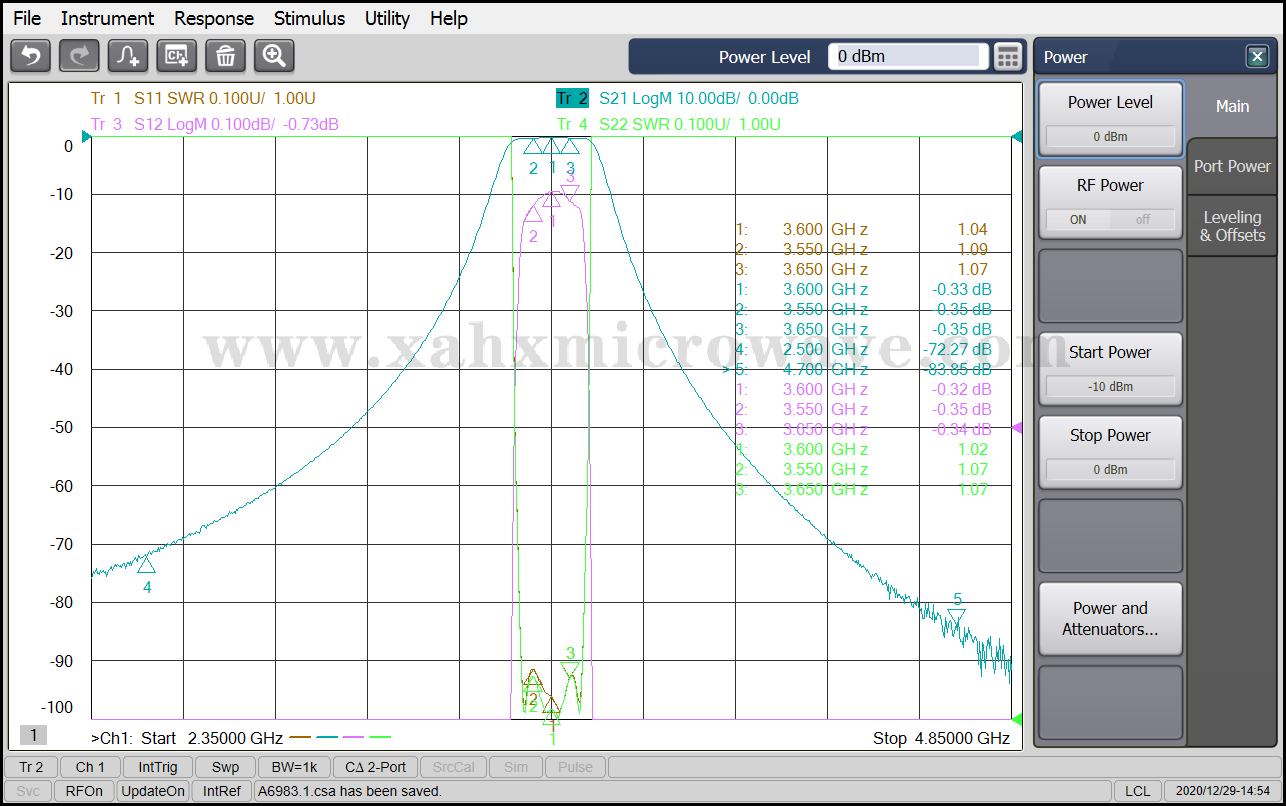

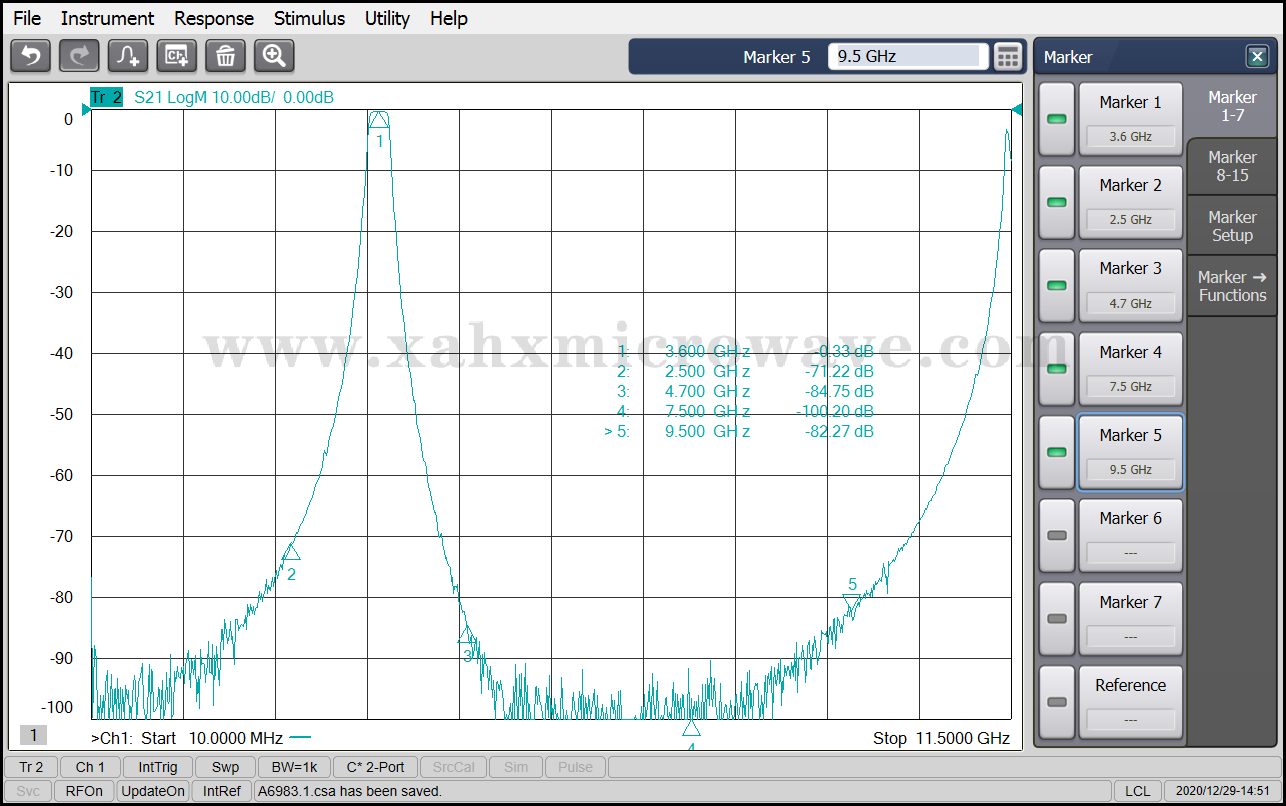

S/N

Item

Parameters

1

Center Frequency(F0)

3.6GHz

2

Pass Band Bandwidth

100MHz (3.55 ~ 3.65GHz)

3

Pass Band Insertion Loss

≤0.8dB

4

Pass Band Ripple

≤0.2dB

5

Pass Band VSWR

≤1.3:1

6

Stop Band Rejection

≥60dB @ DC ~ 2.5GHz

≥60dB @ 4.7 ~ 7.5GHz

7

Impedance

50 Ohms

8

Power

20W Max.

9

Connectors

SMA-Female

10

Surface Finish

Painted Black

11

Temperature Range

-30℃ ~ +70℃

12

Material

Housing: 6061 Aluminum alloy

Cover: LY12 Aluminum alloy

Tuning screw: H62 Copper alloy

Resonant column: H59 Copper alloy

Connectors: H59 Copper, Plated ternary alloy

Other screw: Stainless Steel

13

Dimensions

60*23*21mm
