S/N

Item

Parameters

1

Center Frequency(F0)

7.0GHz

2

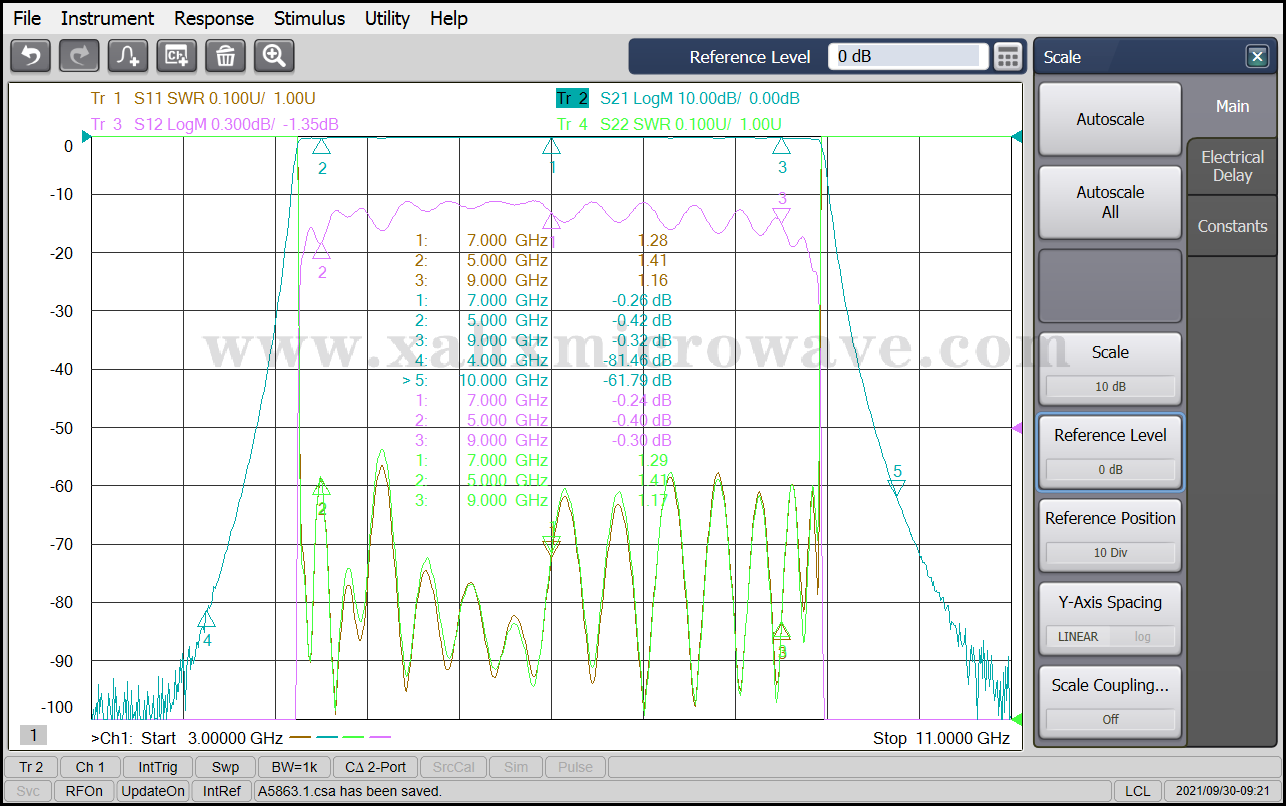

Pass Band Frequency

5.0 ~ 9.0GHz

3

Pass Band Insertion Loss

≤1.5dB

4

Pass Band VSWR

≤1.7:1

5

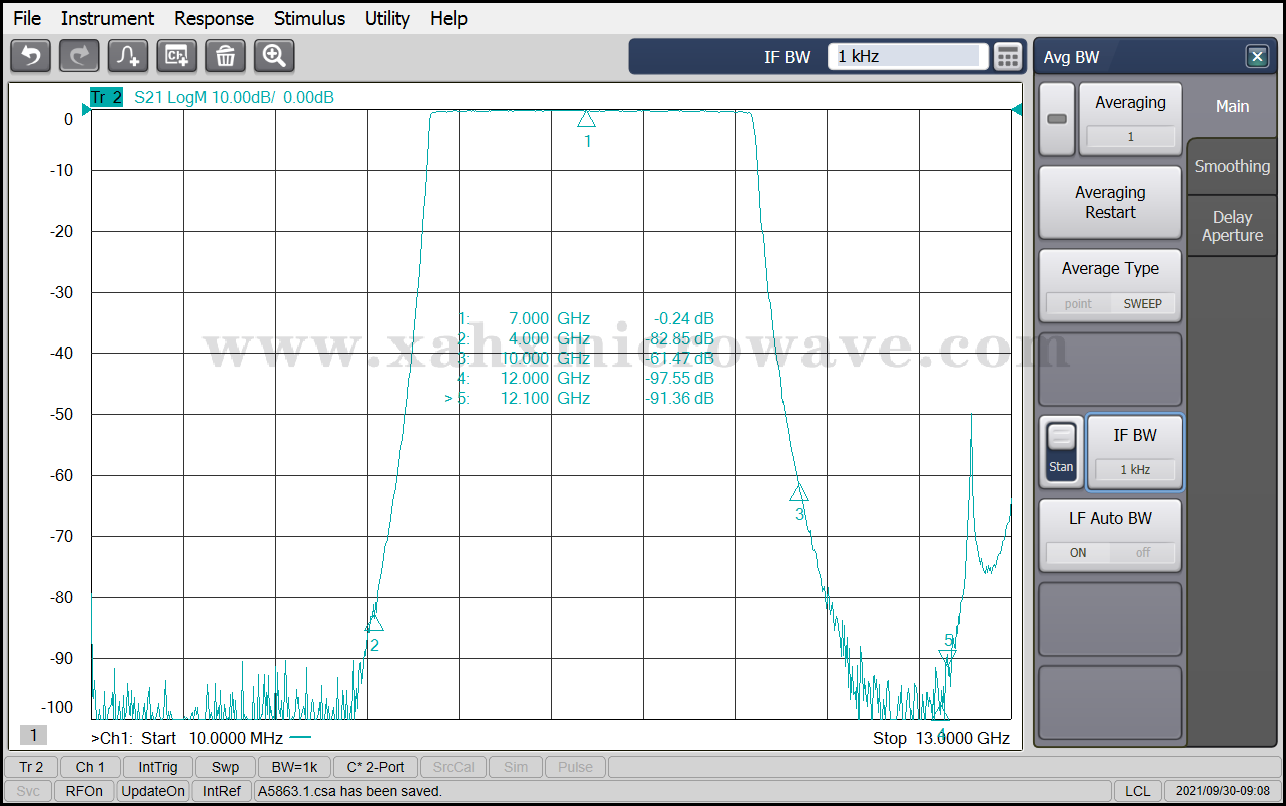

Stop Band Rejection

≥40dB @ DC ~ 4.0GHz

≥40dB @ 10 ~ 12GHz

6

Impedance

50 Ohms

7

Power

2W Max.

8

Connectors

SMA-Female

9

Surface Finish

Painted Black

10

Temperature Range

-30℃ ~ +70℃

11

Material

Housing: H62 Copper alloy

Cover: H62 Copper alloy

Tuning screw: H62 Copper alloy

Connectors: H59 Copper, Plated ternary alloy

Other screw: Stainless Steel

12

Dimensions

60*18*9mm

13

Net weight

TBD
