Serial

Parameters

1

Center Frequency(F0)

14GHz

2

Pass Band Frequency

10～18GHz

3

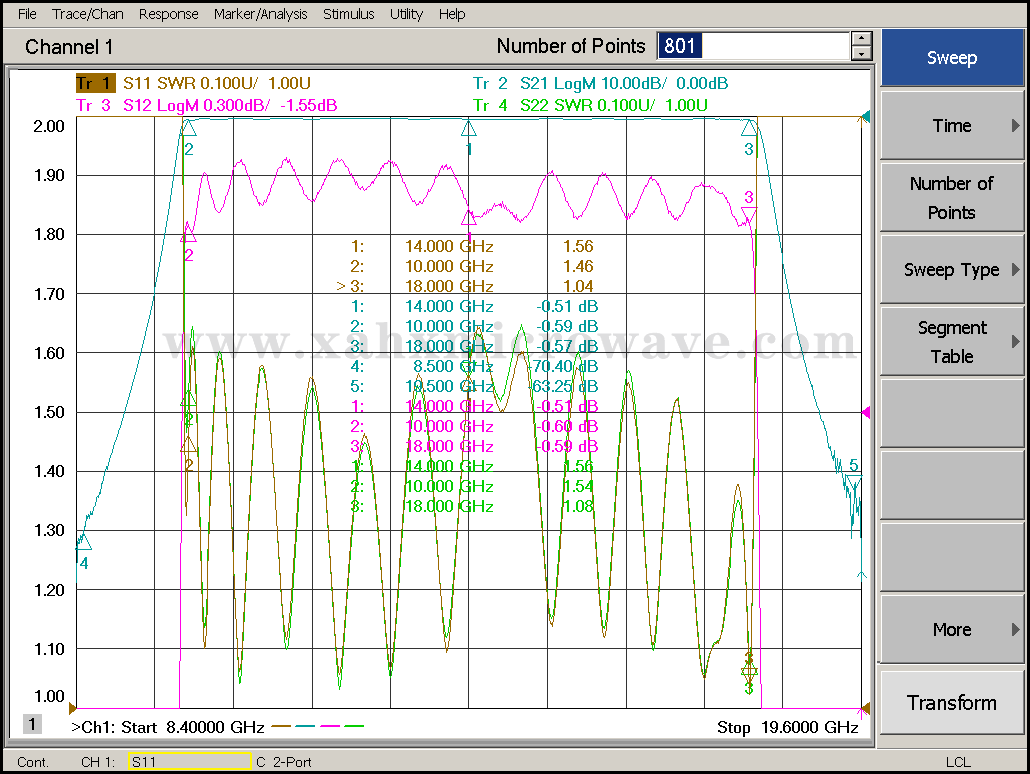

Pass Band Insertion Loss

≤1.0dB

4

Pass Band VSWR

≤1.8:1

5

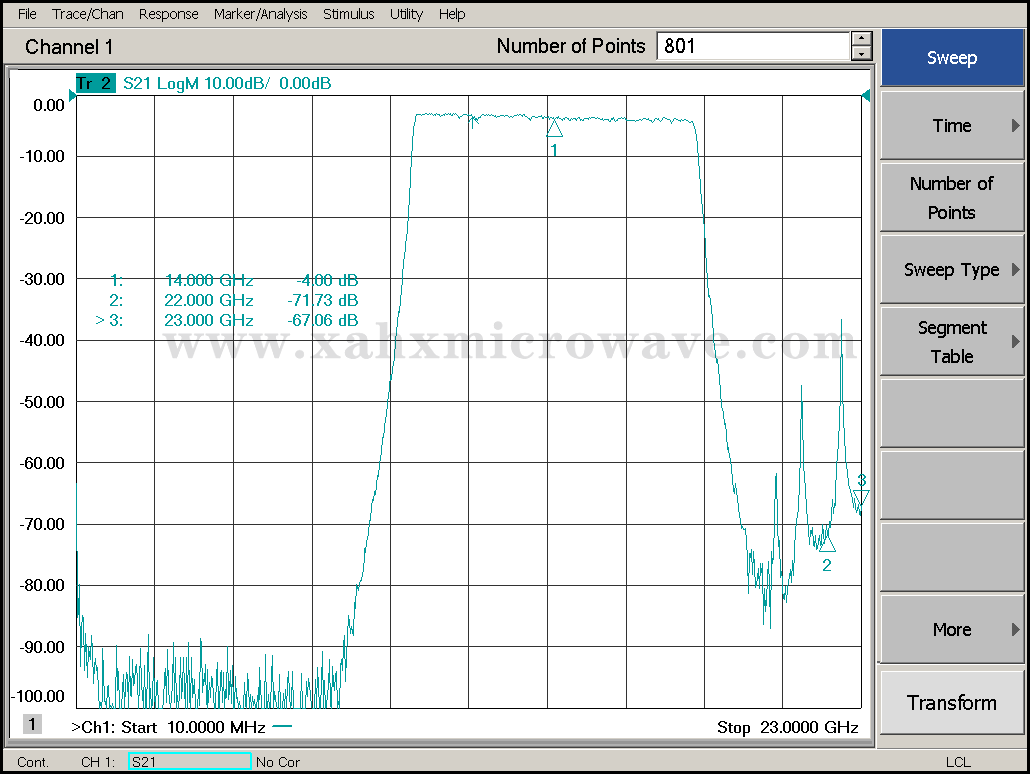

Stop Band Rejection

≥50dB @ DC～8.5GHz

≥45dB @ 19.5～22GHz

6

Impedance

50 ohms

7

Power

≤2W

8

Connectors

SMA-Female (Stainless Steel)

9

Surface Finish

Black Paint

10

Temperature Range

-40℃～+80℃

11

Net weight

TBD

12

Configuration

As Below (Size Unit: mm)
