S/N

Item

Parameters

1

Center Frequency(F0)

5787.5MHz

2

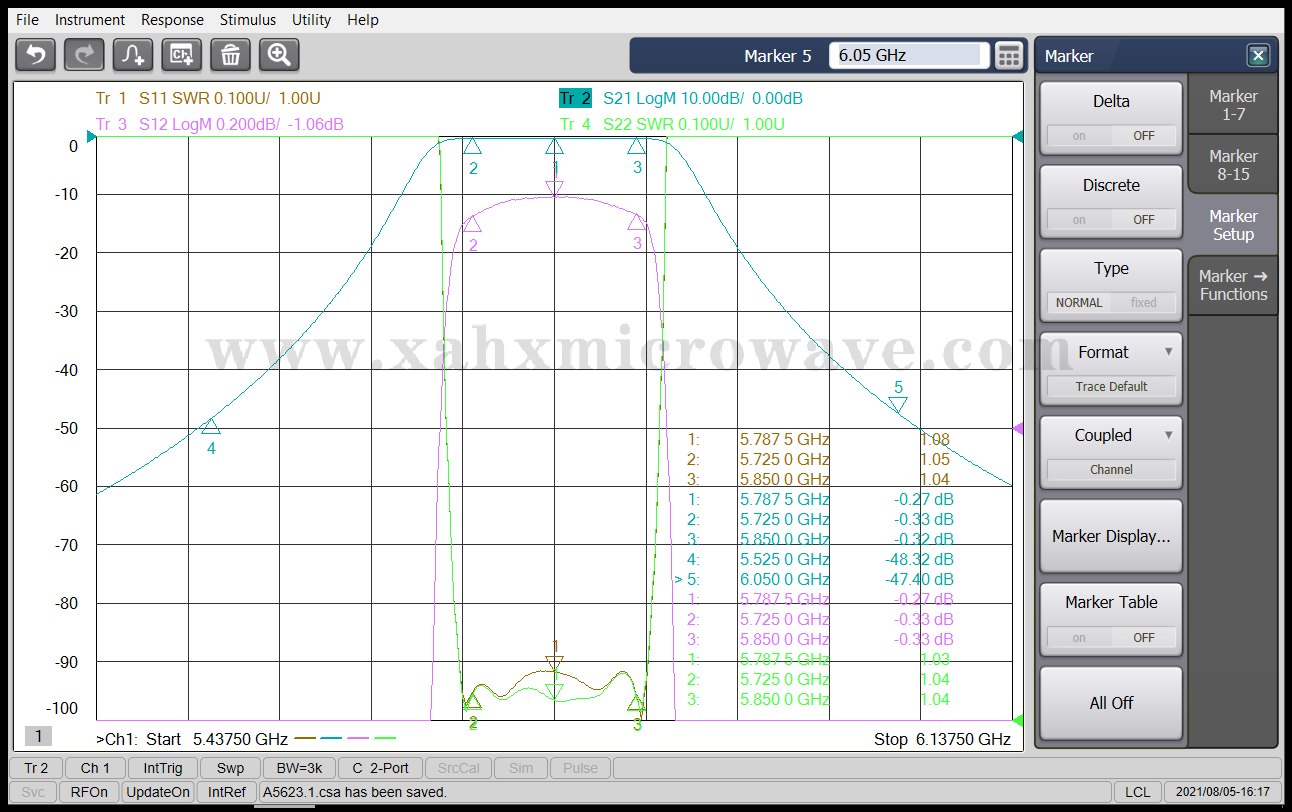

Pass Band Frequency

5725 ~ 5850MHz

3

Pass Band Insertion Loss

≤0.6dB

4

Pass Band VSWR

≤1.3:1

5

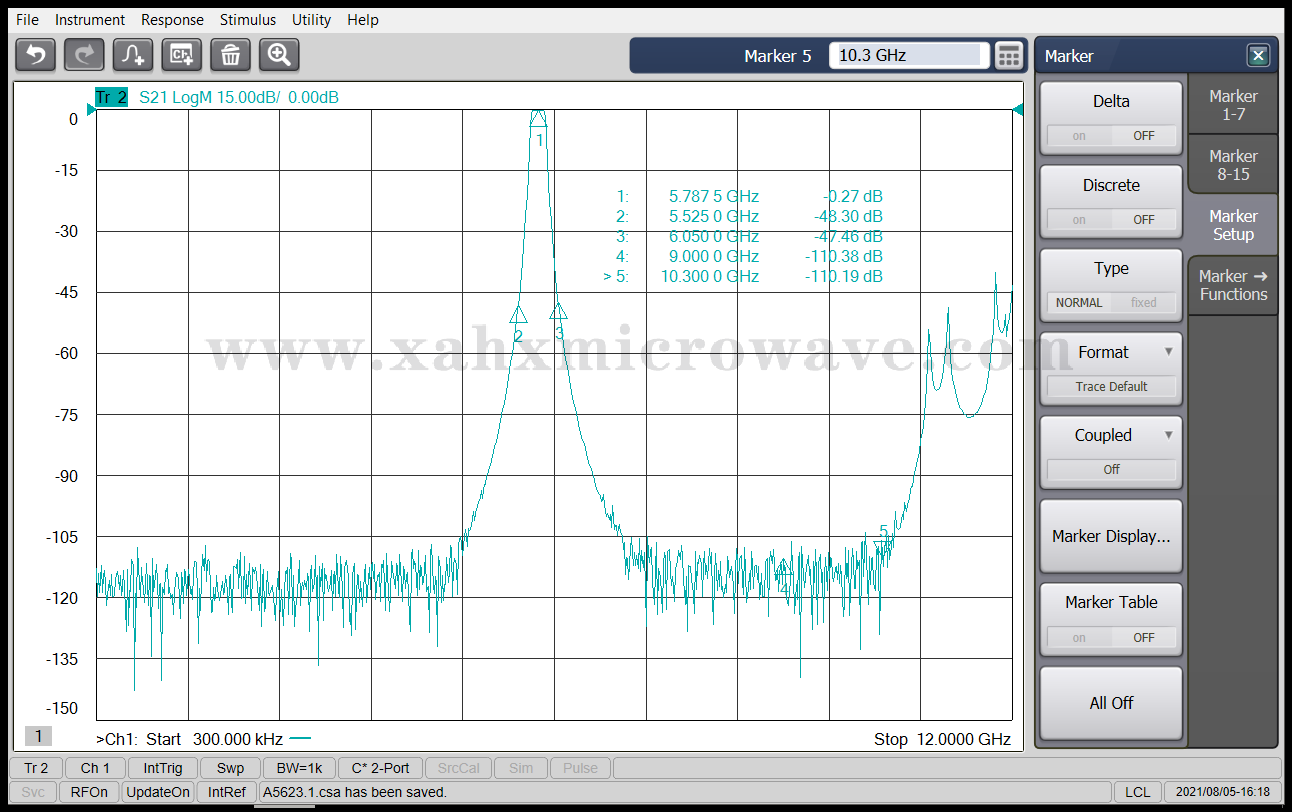

Stop Band Attenuation

≥40dB @ Fc±200MHz (DC ~ 5525MHz , 6050 ~ 9000MHz)

6

Impedance

50 Ohms

7

Power

100W Max.

8

Connectors

SMA-Female

9

Surface Finish

Painted Black

10

Temperature Range

-30℃ ~ +70℃

11

Material

Housing: 6061 Aluminum alloy

Cover: LY12 Aluminum alloy

Tuning screw: H62 Copper alloy

Resonant column: H59 Copper alloy

Connectors: H59 Copper, Plated ternary alloy

Other screw: Stainless Steel

12

Dimensions

100*20*20mm

13

Net weight

TBD
