| Technical Data Sheet | |||
| ● | Center Frequency(F0) | 847MHz | |
| ● | Pass Band Frequency | 832 ~ 862MHz | |
| ● | Pass Band Insertion Loss | ≤2.0dB | |
| ● | Pass Band Ripple | ≤1.4dB | |
| ● | Pass Band Return Loss | ≥20dB | |
| ● | Stop Band Rejection | ≥30dB @ DC ~ 827MHz | ≥30dB @ 867 ~ 2500MHz |
| ● | Impedance | 50 Ohms | |
| ● | Power Handling | 20W Max. | |
| ● | Connectors | N-Female | |
| ● | Surface Finish | Painted Black | |

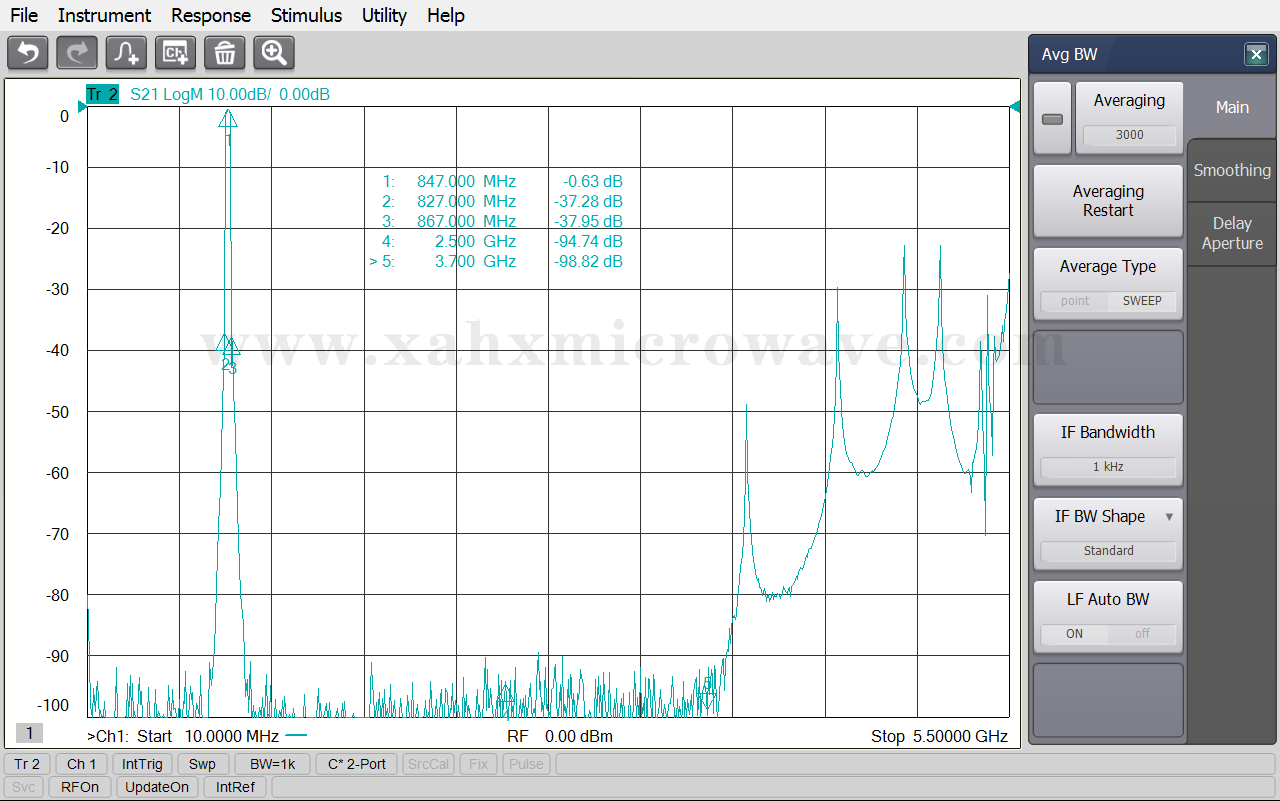

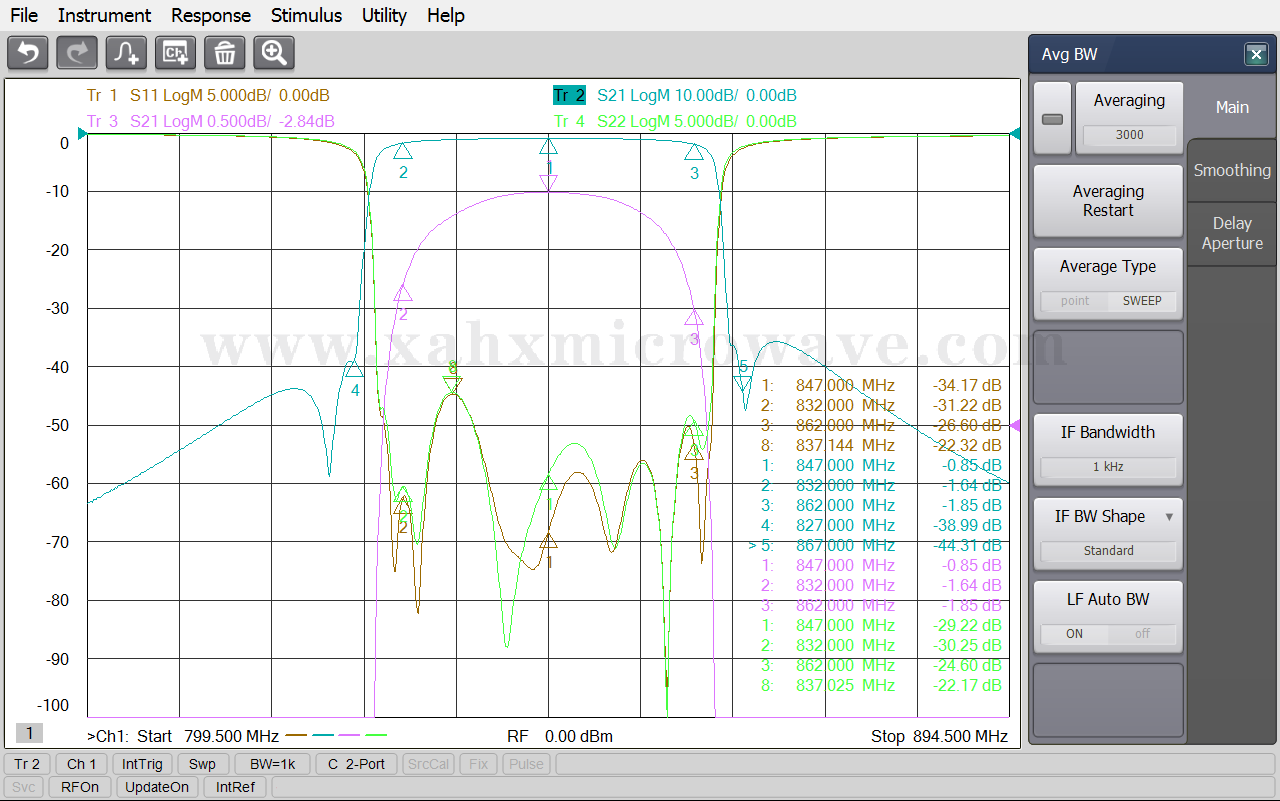

| Test Curve | |||
