| Technical Data Sheet | |||
| ● | Center Frequency(F0) | 1920MHz | |
| ● | Pass Band Frequency | 1910 ~ 1930MHz | |
| ● | Pass Band Insertion Loss | ≤3.0dB | |
| ● | Pass Band Ripple | ≤2.0dB | |
| ● | Pass Band Return Loss | ≥20dB | |
| ● | Stop Band Rejection | ≥40dB @ DC ~ 1903MHz | ≥40dB @ 1937 ~ 4500MHz |
| ● | Impedance | 50 Ohms | |
| ● | Power Handling | 20W Max. | |
| ● | Connectors | N-Female | |
| ● | Surface Finish | Painted Black | |
| ● | Temperature Range | +15℃ ~ +35℃ | |

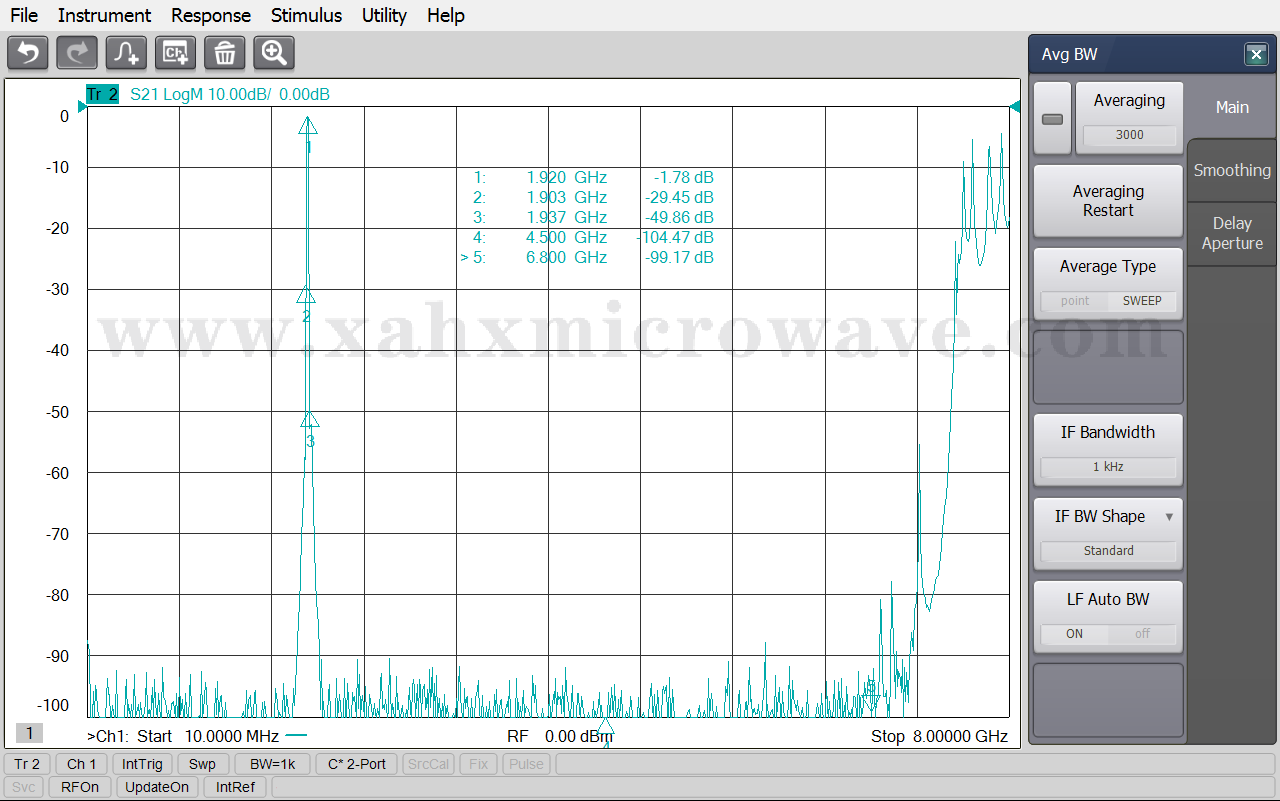

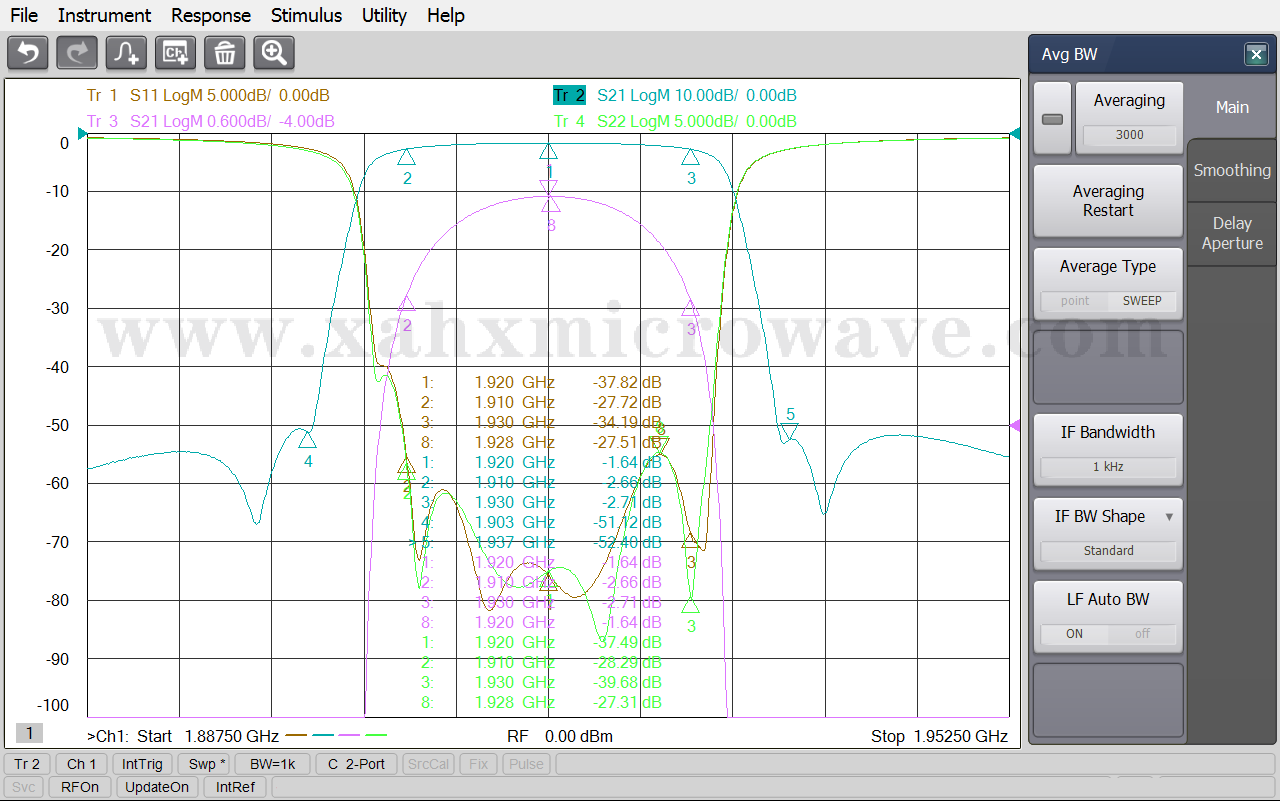

| Test Curve | |||
