| Technical Data Sheet | |||
| ● | Center Frequency(F0) | 5650MHz | |
| ● | Pass Band Frequency | 5400 ~ 5900MHz | |
| ● | Pass Band Insertion Loss | ≤0.5dB @ 5650MHz ≤0.9dB @ 5400 ~ 5900MHz | |
| ● | Pass Band Ripple | ≤0.35dB | |
| ● | Pass Band VSWR | ≤1.15:1 | |
| ● | Stop Band Rejection | ≥80dB @ DC ~ 5000MHz | ≥60dB @ 6150 ~ 6300MHz |
| ≥60dB @ 5000 ~ 5150MHz | ≥80dB @ 6300 ~ 19000MHz | ||
| ● | Impedance | 50 Ohms | |
| ● | Power Handling | 10W Max. | |
| ● | Connectors | SMA-Female | |
| ● | Surface Finish | Painted Black | |
| ● | Temperature Range | -30℃ ~ +70℃ | |

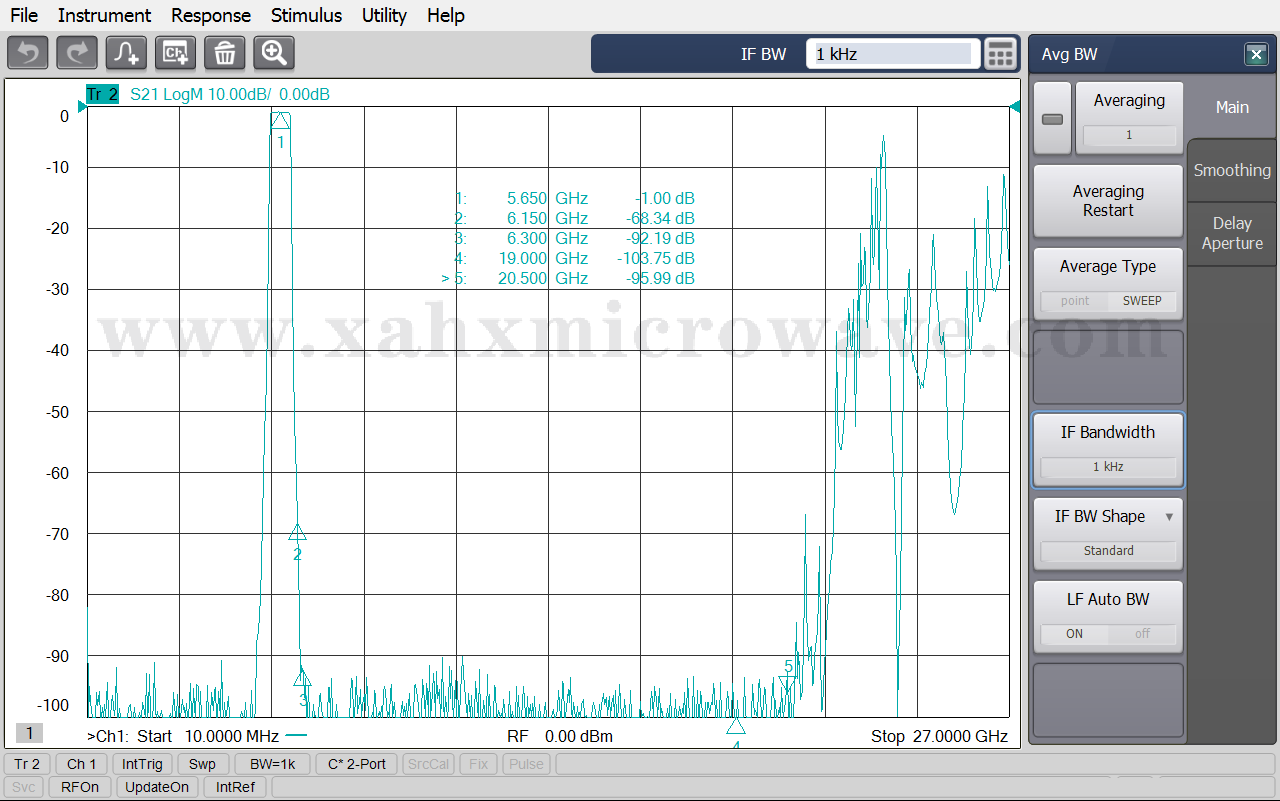

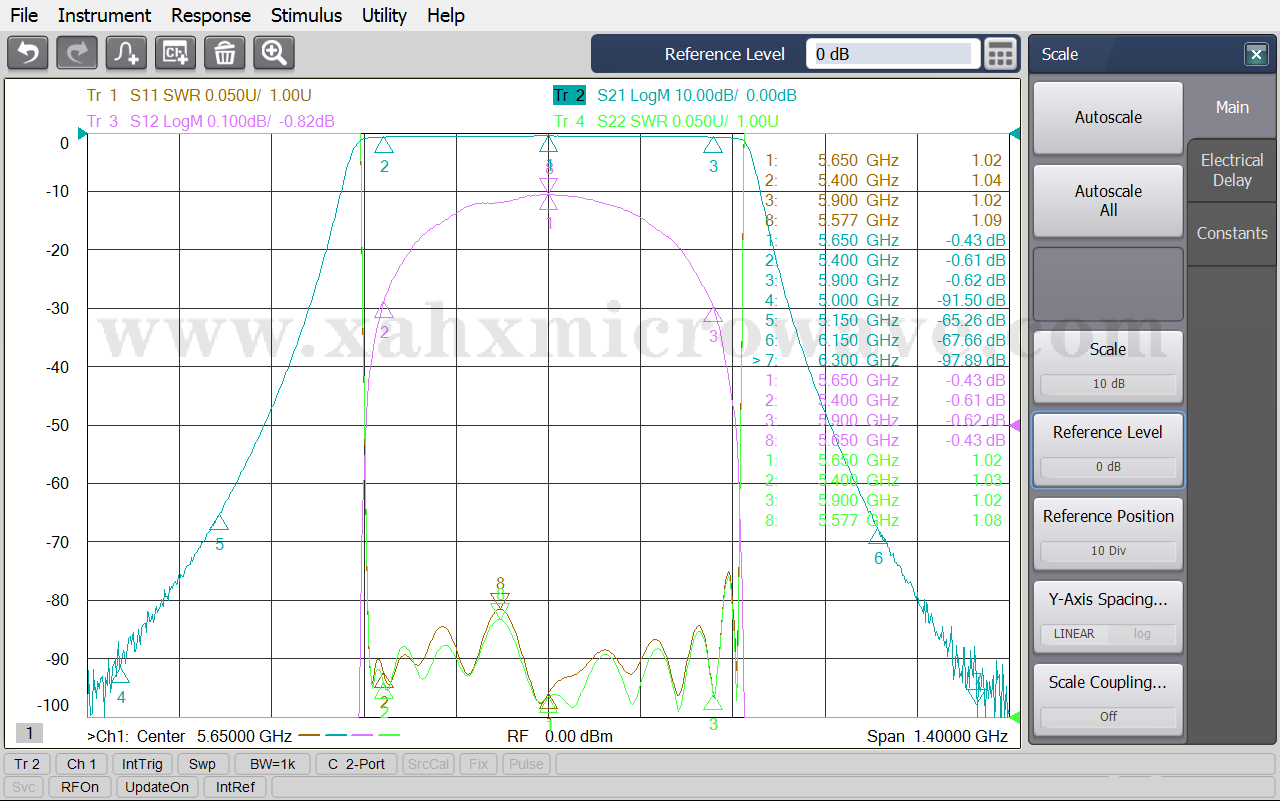

| Test Curve | |||
