| Technical Data Sheet | ||
| ● | Center Frequency(F0) | 3016.9MHz |
| ● | Design Bandwidth | About: 4.2MHz |
| ● | Insertion Loss @ F0 | ≤5.0dB @ F0 |
| ● | Return Loss @ F0 | ≥18dB @ F0 |
| ● | Stop Band Rejection | ≥60dB @ F0±20MHz (DC ~ 2996.9MHz , 3036.9MHz ~ 7000MHz) |
| ● | Impedance | 50 Ohms |
| ● | Power | 5.0W Max. |
| ● | Connectors | SMA-Female |
| ● | Surface Finish | Painted Black |
| ● | Temperature Range | +15℃ ~ +30℃ |

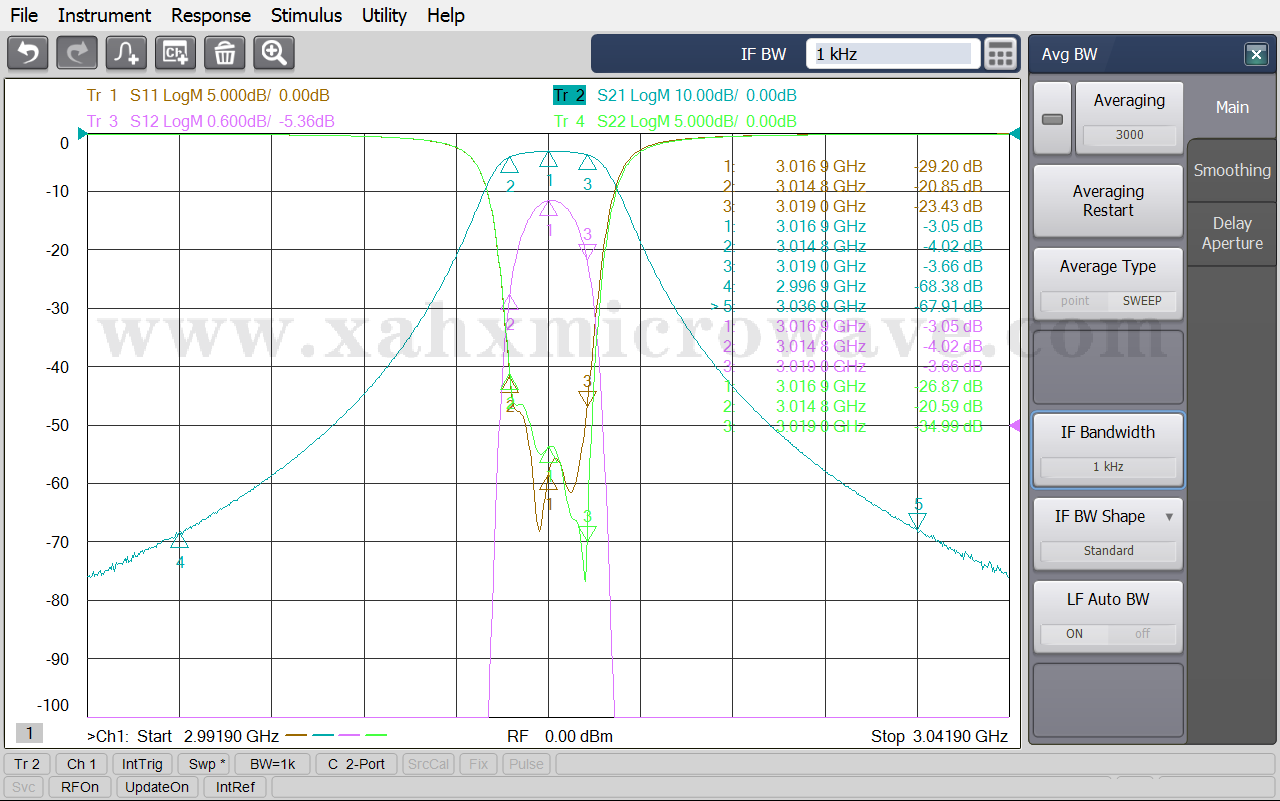

| Test Curve | ||
