| Technical Data Sheet | |||
| ● | Center Frequency(F0) | 1080MHz | |
| ● | Pass Band Frequency | 960 ~ 1200MHz | |
| ● | Pass Band Insertion Loss | ≤1.2dB | |
| ● | Pass Band Ripple | ≤0.6dB | |
| ● | Pass Band Return Loss | ≥20dB | |
| ● | Stop Band Rejection | ≥80dB @ DC ~ 755MHz | ≥60dB @ 1300 ~ 1335MHz |
| ≥50dB @ 755 ~ 860MHz | ≥80dB @ 1335 ~ 4500MHz | ||
| ● | Impedance | 50 Ohms | |
| ● | Power Handling | 5.0W Max. | |
| ● | Connectors | SMA-Female | |
| ● | Surface Finish | Painted Black | |
| ● | Temperature Range | -40℃ ~ +70℃ | |

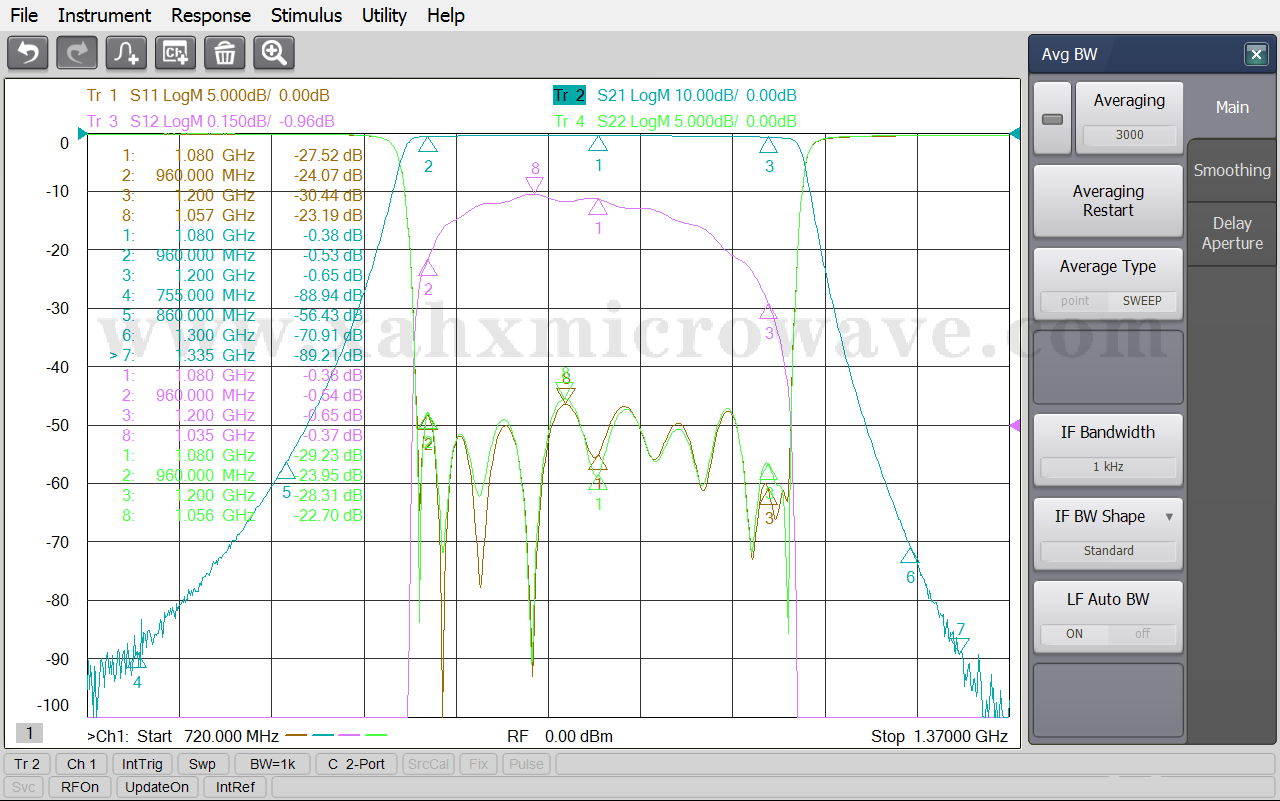

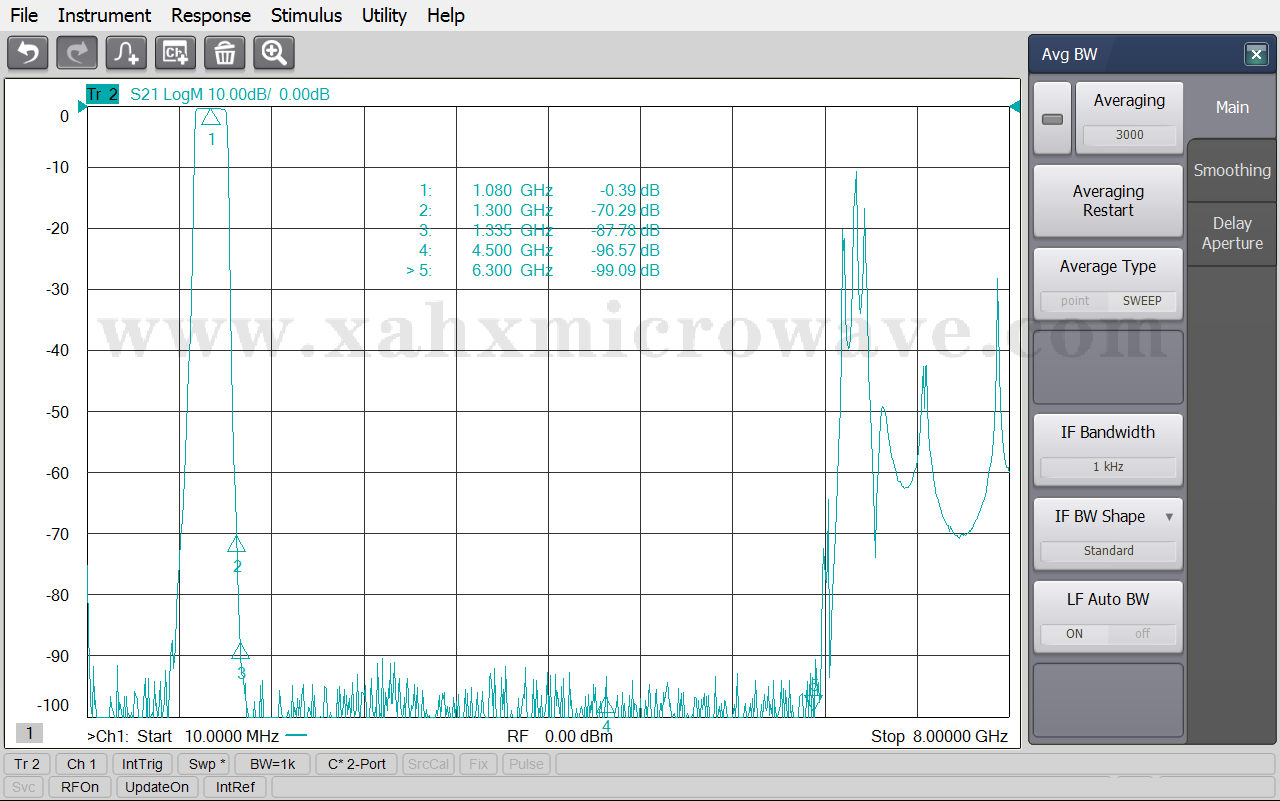

| Test Curve | |||
