| Technical Data Sheet | |||
| ● | Center Frequency(F0) | 3390.5MHz | |
| ● | Pass Band Frequency | 3380 ~ 3401MHz | |
| ● | Pass Band Insertion Loss | ≤1.0dB | |
| ● | Pass Band Ripple | ≤0.4dB | |
| ● | Pass Band Return Loss | ≥20dB | |
| ● | Stop Band Rejection | ≥40dB @ DC ~ 3340MHz | ≥40dB @ 3441 ~ 7000MHz |
| ● | Impedance | 50 Ohms | |
| ● | Power Handling | 20W Max. | |
| ● | Connectors | SMA-Female | |
| ● | Surface Finish | Painted Black | |

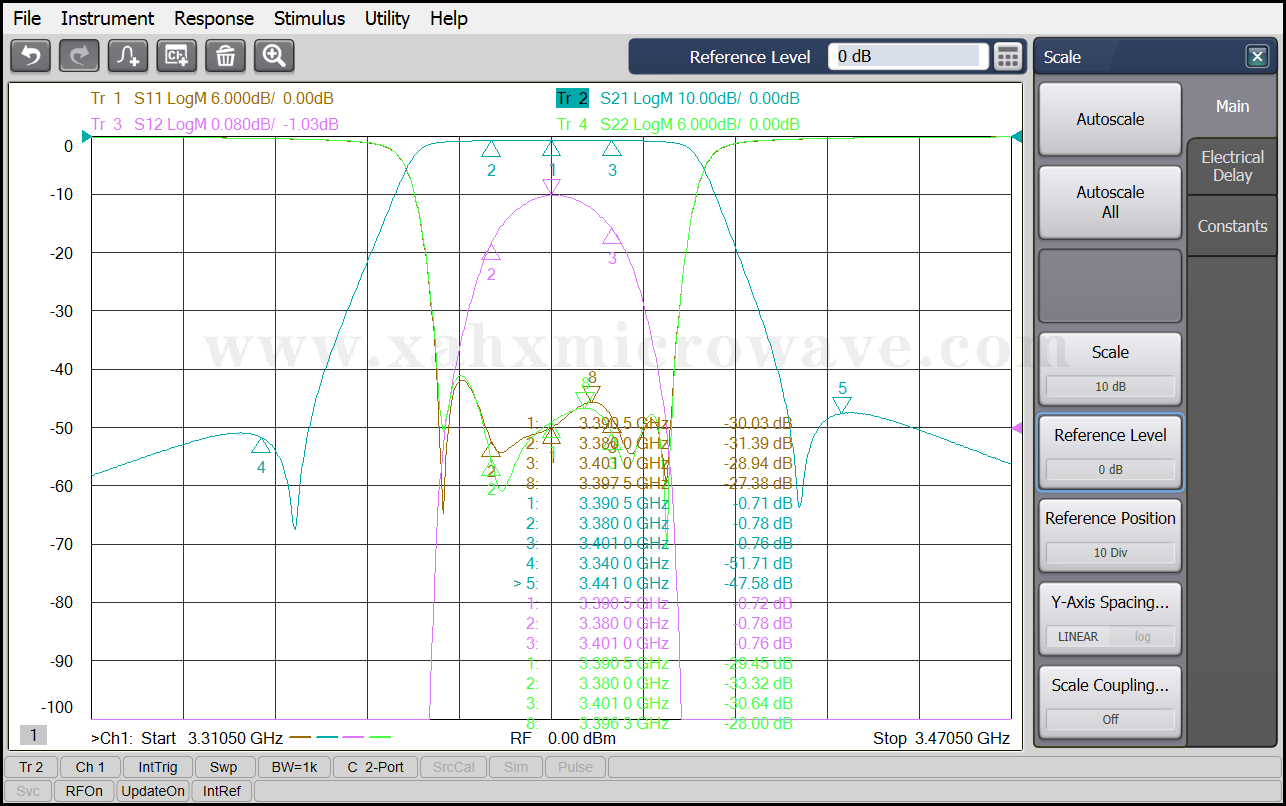

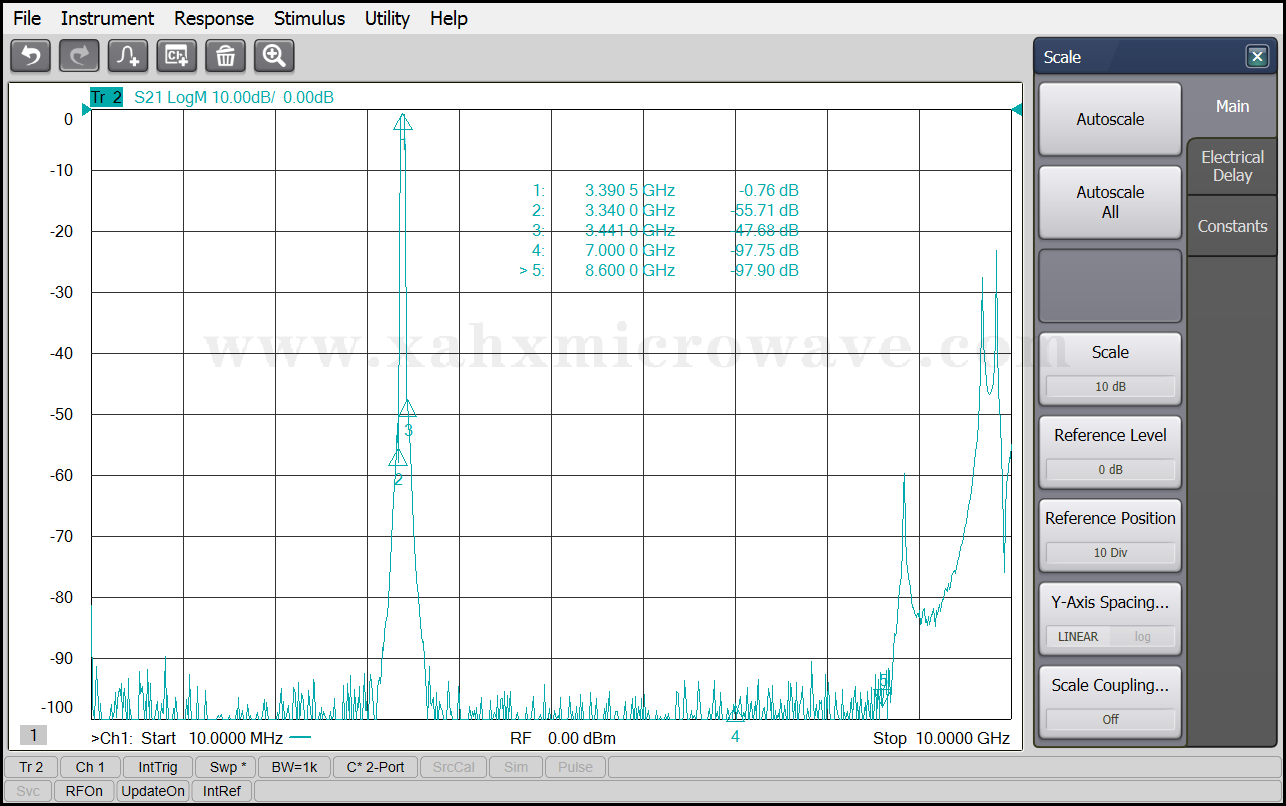

| Test Curve | |||
