Serial

Parameters

1

Center Frequency (F0)

5275MHz

2

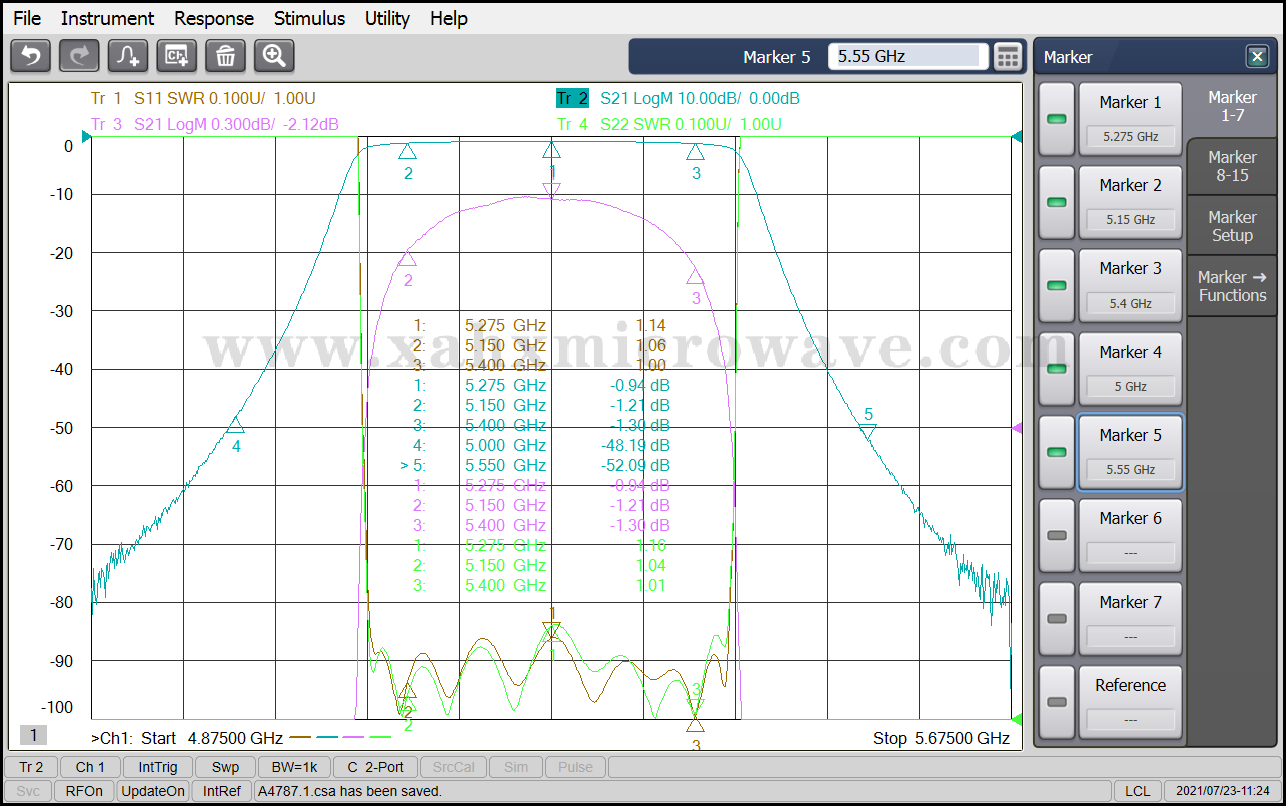

Pass Band Frequency

5150～5400MHz

3

Pass Band Insertion Loss

≤2.0dB

4

Pass Band VSWR

≤1.3:1

5

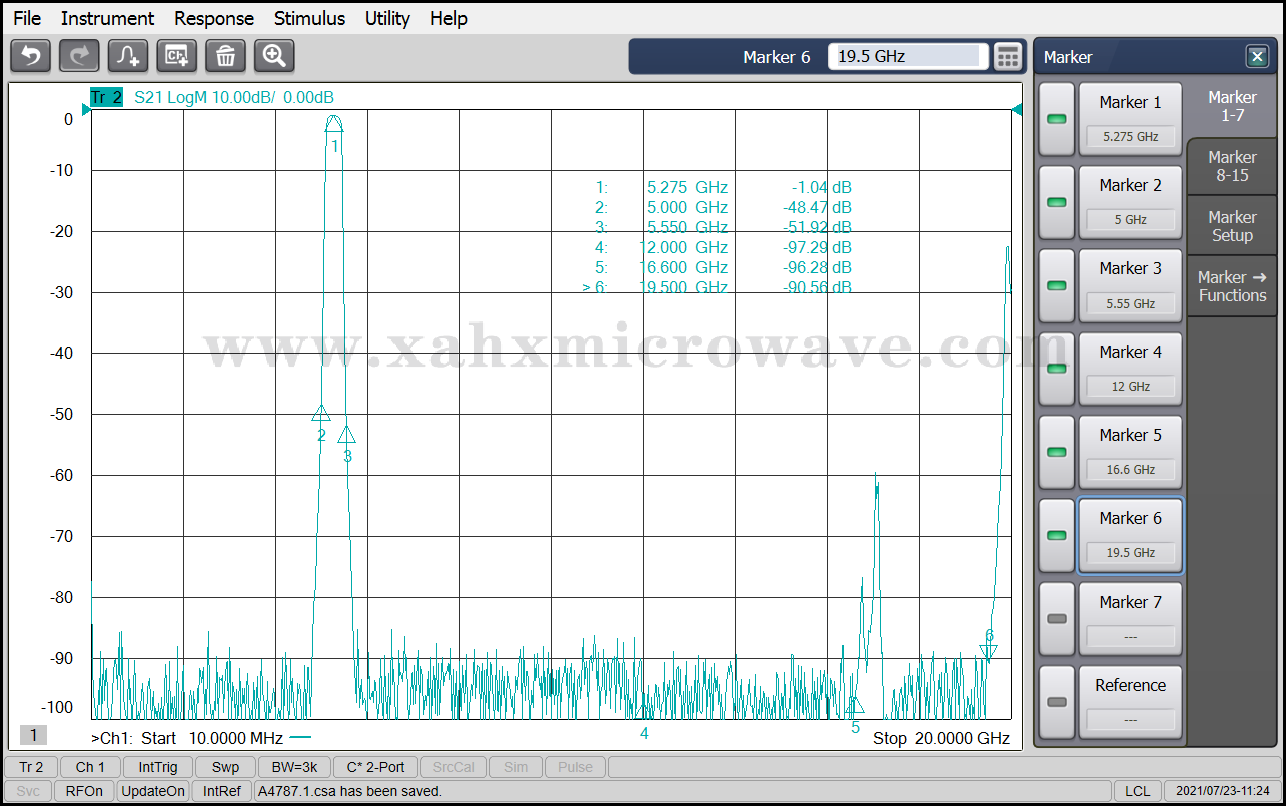

Stop Band Rejection

≥40dB @ DC～5000MHz

≥40dB @ 5550～12000MHz

6

Impedance

50 ohms

7

Power Handling

≤5W

8

Connectors

SMA-Female

9

Surface Finish

Black Paint

10

Operating Temperature

-30℃～+70℃

11

Net Weight

TBD

12

Configuration

As Below (Size Unit: mm)
